Rope and hook analysis

Answering your wire rope questions

  • The Konecranes Rope Analysis is designed to provide expert consultation to answer your wire-rope and rope-reeving questions. The analysis targets individual concerns such as rope selection, rope life, component failures, unexpected rope behavior, accident investigation or improvement opportunities, including recommendations on extending rope and component life.

    Using proprietary 3D modeling and calculation tools, we provide an engineering assessment, calculation and inspection of your ropes and reeving components. The rope life calculation is based on the EN 13001-3-2:2014 standard.
  • Rope analysis graphic

Rope life estimate and recommendations

We provide expert consultation and can give you a calculated estimate of rope life, recommendations for rope selection or rope reeving geometry improvement to target a variety of issues. The Rope Analysis can also be used to investigate a rope failure.

We can help answer your rope and hook questions

If you have questions about wire rope and rope reeving or the remaining fatigue life of a crane hook an analysis may be in order.

Contact us today to schedule an analysis

Contact us

A deep look at crane hook condition

The crane hook and bottom block components are stressed during each hoisting cycle. Hooks can fail due to cumulative fatigue. These failures often start as a fatigue crack in the hook shank. Heavy process-duty applications, changes in application and the use of below-the-hook lifting devices can all contribute to cumulative fatigue.

Calculating the remaining fatigue life of your hook

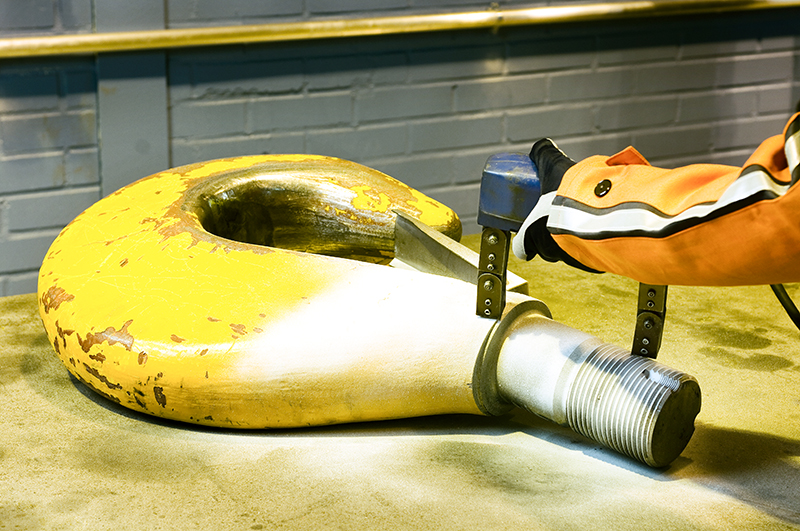

Overhead crane hookThe Konecranes Hook Analysis utilizes visual and NDT inspections combined with fatigue calculations of the hook/shank and critical components of the bottom block. We're able to calculate the remaining fatigue life of your crane hook by reviewing the operating history of the crane and using that in conjunction with the reeving system dimensions.

Our expert consultation on hook life, condition and safety can be helpful in planning, troubleshooting, and accident investigation. Konecranes uses the most current hook standard and analysis methods to estimate hook life.

Recommendations are provided for the continued use of the hook along with a detailed continuing inspection plan.
