Jib cranes

Robust lifting for dynamic work environments

  •

    Konecranes jib cranes are vital to any production process requiring speed, accuracy, and minimal downtime. Designed for a seamless user experience, they are versatile, durable, and serve almost any kind of workstation, providing support for overhead cranes on production lines, and helping to keep terminals, machining cells, and warehouses operating smoothly.

    With several different ways to fix the jib to the wall or floor, and a variety of hoists available, they are perfectly suited to a wide variety of facilities. The cranes have a load capacity of up to 2,000 kg and a slewing motion that can reach 300 degrees with a pillar jib, and 270 degrees with a wall mounted jib.

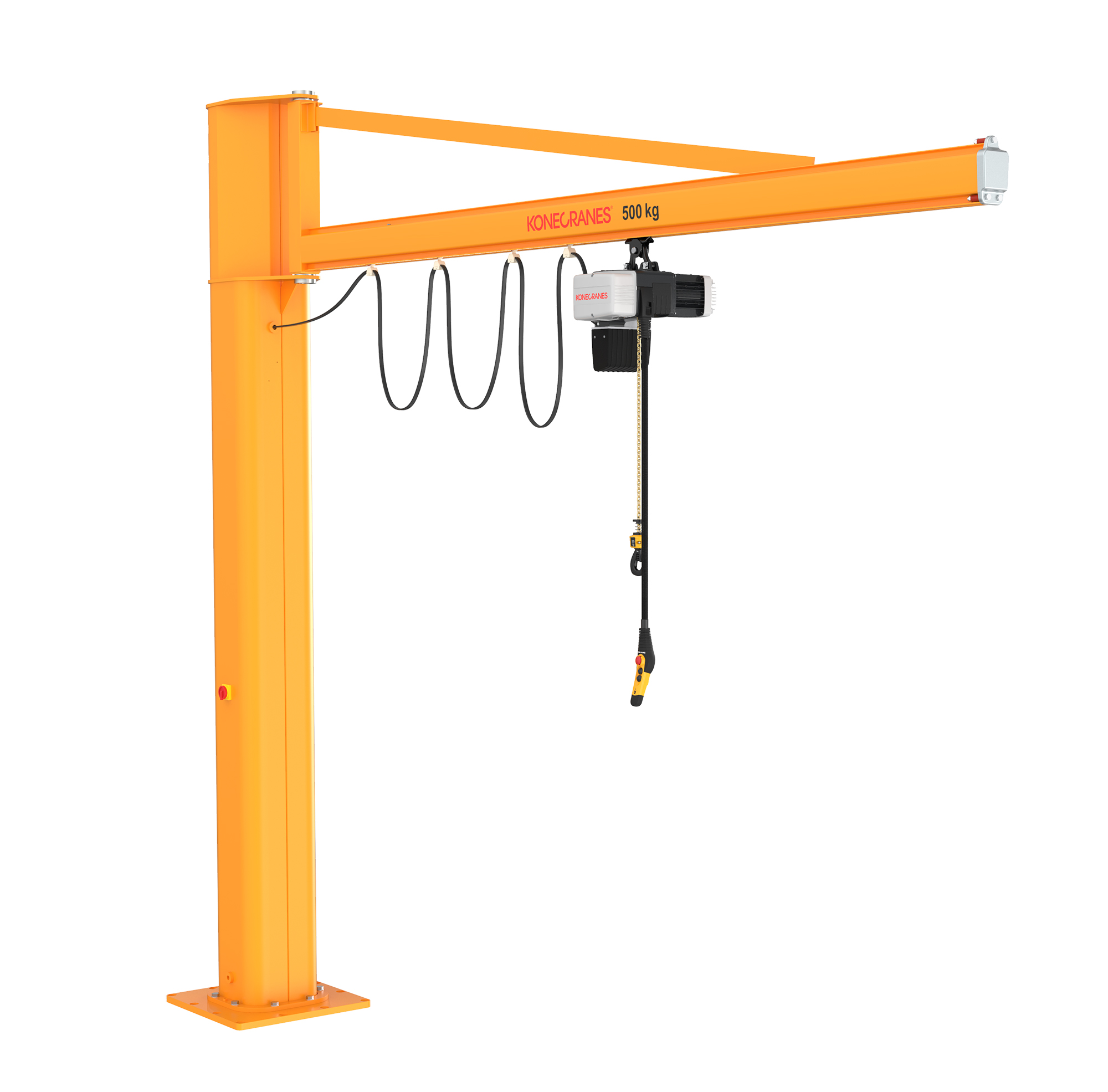

  • jib crane



Product features

The Konecranes wall-mounted and pillar jib cranes have common product features, including:

•    Multiple designs for jib arms based on customer requirements
•    Steady slewing with robust bearing and adjustable slewing resistance
•    Manual slewing available for all types
•    Slewing limiter allows rotation adjustment every two degrees
•    Clamp fitting lets slewing limiter be added after installation
•    Motorized slewing for jibs with I-beam arms
•    Standard on/off safety switch with pillar jibs (optional for wall-mounted)
•    Robust festooning and easy running with reliable cable carriers
•    Pillar-mounted jibs allow cables from below, side, or above
•    Selection of hoists: manual, electric chain, and pneumatic lifting devices

Technical specs

Standard features Pillar-mounted Jib crane Wall-mounted Jib crane
Lifting capacity 2,000 kg 2,000 kg
Crane control Radio / pendant Radio / pendant
Maximum rotation 300º 270º
Hoist options Manual hoist, electric chain hoist, air balancer Manual hoist, electric chain hoist, air balancer
EC Machinery Directive
Design principles DIN15018, Lifting class H1, Loading group B3 DIN15018, Lifting class H1, Loading group B3
Humidity Maximum 80 % relative humidity Maximum 80 % relative humidity
Ambient temperature* -20 °C to +70 °C -20 °C to +70 °C
Surface protection and paint** Category C2-M corrosion protection according to DIN EN ISO 12944 Category C2-M corrosion protection according to DIN EN ISO 12944

* Applies to the jib crane steel structure only. Other components such as different hoist types have more narrow operating conditions.
** Higher-grade protective paint or other paint colours on request.

Benefits

Konecranes jib cranes are fast and precise tools for material handling with the following product benefits:
•    Easily adapts to your multipurpose facility with a wide range of options
•    Improves safety and productivity
•    Efficient and accurate load handling up to 2,000 kg
•    Advanced ergonomic design and adjustable features enhance the operator experience
•    Simple to install and relocate
•    Longer lifecycle with low maintenance requirements
•    Easy serviceability minimizes downtime

Consult our Crane Advisor

Crane Advisor is an online tool that offers recommendations based on your specific lifting application needs. Visit Crane Advisor to see if jib cranes are suitable for your application.


Crane Advisor
Customer story

New assembly hall benefits from comprehensive crane concept

Overhead cranes in manufacturing facilityThe collaboration with Konecranes is very professional. With high-technology solutions such as the tandem operation and the adaptive lifting speeds, the transport of components and compressors is significantly faster and safer. We now save up to a maximum of one third of production time.

Clemens Jaser, Building Design
Read more

Global and local service networks

Konecranes jib cranes are used everywhere, from small workshops to large assembly lines, from manufacturing to harbors, and even in nuclear power plants. This reliable equipment requires very low upkeep to stay in full working order for many years. As the world’s top supplier of industrial cranes, we have the most extensive service network in the industry, servicing hundreds of thousands of assets each year of all different makes and models.
