EXCXT electric wire rope hoist cranes

Performance and productivity in hazardous environments

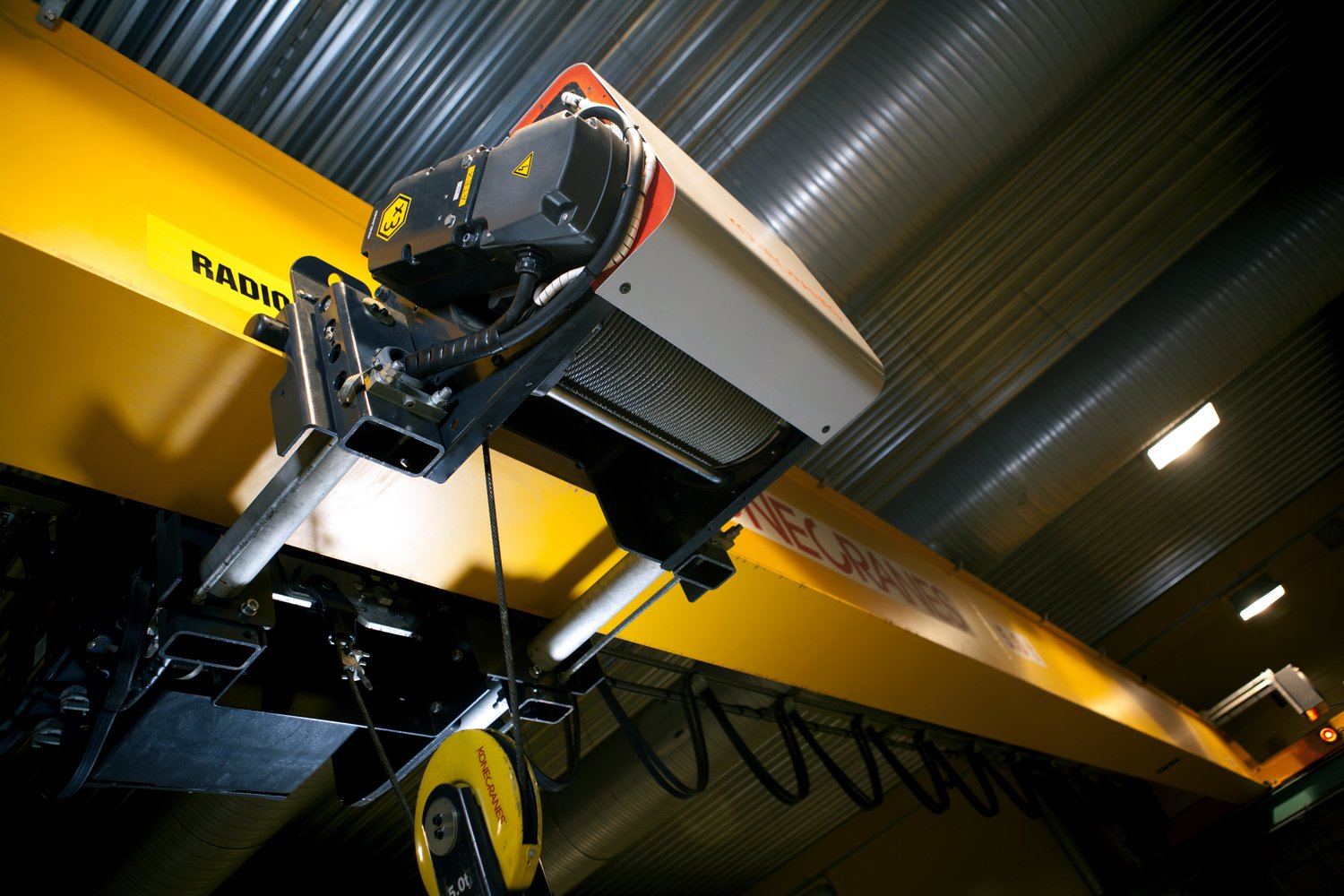

EXCXT wire rope hoist craneKonecranes EXCXT electric wire rope hoist cranes are the industry standard, safe and simple to use in all kinds of hazardous environments. A reliable, all-purpose crane, its strong steel frame and ex-proof EXCXT hoist supports industrial lifting up to 80 tons for risky settings in a wide range of industries.

An ergonomic user interface allows the operator to concentrate on lifting, while state-of-the-art speed control and motor technology offers accuracy and safety. With a large rope drum diameter, hoist dimensions are compact while hook approaches are minimized. Flameproof enclosures shield the motor and electrical components.

Product features

The Konecranes EXCXT cranes have the following standard features:

  • Electrical components and motors designed and built to explosion-proof regulations
  • Ergonomic user interface
  • Innovative mechanical configuration prevents sparking
  • Class H insulation, IP65 protection for electrical enclosures and IP66 for motors
  • International EX-proof certification: ATEX, CSA, CCC and IECEx for gas and dust
  • Accessible maintenance points
  • Precise and secure movement
  • Optional EX-proof extras, including:
    • inverter traveling
    • additional second brake for hoisting
    • warning indicators
    • bronze-coated hooks
    • weather cover
    • radio controller

Technical specifications

FEATURES SPECIFICATIONS
Lifting capacity 800 - 80,000 kg
Lifting height Up to 98.5 meters
Available trolley configurations Low headroom trolley, normal headroom trolley, double girder trolley, fixed hoist without trolley
Hazardous location classifications Zone 1 IIB T4, Zone 1 IIC T4, Zone 2 IIB T3, Zone 2 IIC T3, Zone 21 IIIC T135°C, Zone 22 IIIC T135°C, Class I Division 1, Groups C & D, T4, Class I Division 2, Groups B, C & D, T3
Conformity with: ATEX Directive 2014/34/EU, IECEx, CSA (NEC 500)
3rd party certificates ATEX, IECEx, CSA

Benefits

The Konecranes EXCXT cranes offer the following benefits to operators and facilities:

  • Easy load and safe handling with exceptional performance
  • Increased productivity
  • Reduced downtime
  • Minimized ignition risk under standard operating conditions
  • Shorter maintenance breaks with service-friendly technology
  • Easily adaptable
  • High levels of safety
  • Reliable in challenging environments
  • Ideal for industries such as chemicals, wood and oil
  • All hoist and crane systems fully tested for reliability and safety.

Want to know more about EX cranes?

Contact us to learn more about how an EXCXT crane can satisfy your lifting needs.


High level of performance and reliability

Konecranes EX equipment is specially designed for the demanding requirements of hazardous environments. Our design quality, technical expertise and after-sales service helps your equipment stay safe to run and fully operational throughout a long and productive lifecycle.

Strong, safe industrial lifting, wherever you need

Add an EXCXT hoist to the crane you’re currently using or get an entirely new EXCXT crane. Either way, you’ll benefit from the highest levels of built-in safety and a wide range of optional features that tailor your equipment to your specific hazardous lifting environment. Because Konecranes is one of the world leaders in equipment manufacturing, you’ll also benefit from our global support network with more than 600 service locations in nearly 50 countries.
