Maximizing the productivity
Pulp and paper is an industry tailor-made for automation. When it comes to choosing the right level of automation, it’s important to understand the nature of what you are machining as well as your specific requirements and capabilities. In several critical areas of the mill, automated cranes can help reduce labor costs, optimize storage, track inventory, reduce roll damage, increase productivity and lower the capital expense associated with forklift systems. Moving into the future, automation is taking an ever-larger role in promoting mill safety, productivity and profitability.

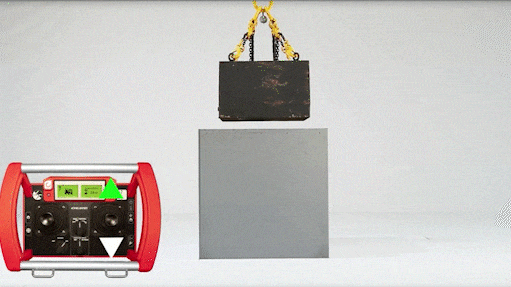

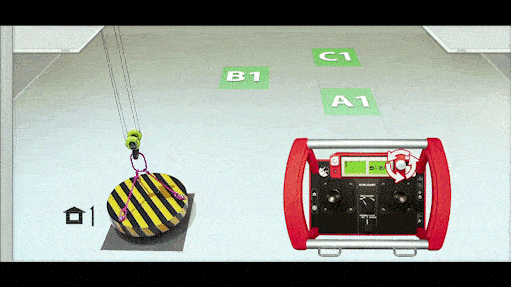

Semi-automation involves an operator picking the load and then pressing a button to instruct the crane to deliver it to a pre-determined destination. Our cranes already include many features to help maximize safety and productivity. Movements and cycles are automatically controlled, minimizing human error. Konecranes Smart Features help improve safety, cycle times and load positioning, delivering major benefits when performing repetitive actions and are particularly useful on automated cranes.
![service personnel](/sites/default/files/styles/height_200/public/2021-09/JPG%20Medium_paper_Imatra_Finland_Stora_Enso_2013_008_Konecranes.jpg?itok=tRfud9FN)
![service personnel](/sites/default/files/styles/height_200/public/2021-09/JPG%20Medium_paper_Imatra_Finland_Stora_Enso_2013_008_Konecranes.jpg?itok=tRfud9FN)
Automation helps protect people as well as products
ASRS systems are also designed to be safe around people. Access to the automated area is synchronized with crane operation, so that access is only allowed when the crane is set to stand-by state. Separate protected areas can also be set inside the normal operating area of the crane. The crane is synchronized with the conveyor control system by means of hardwired signals during material pick-up or drop-off. This maximizes the safety of material exchange and both systems can stop the process if there are any unexpected faults or alarms.
In addition, the cranes are equipped with safety features such as overload protection, over-speed protection, limits for crane motion and emergency stop functions. Konecranes automated cranes for paper mills are engineered to meet or exceed applicable international and local safety regulations.
Fully automated paper storage
Konecranes Automated Storage and Retrieval System (ASRS) can revolutionize productivity, especially in mills with limited space. ASRS combined with fully automated crane increases handling speed, stacking paper or tissue rolls much higher in less space than comparable forklift systems, without requiring floor space for aisles. The system accurately tracks the location of each bar-coded roll individually, assuring fresh inventory. And, up to 30 percent of the energy used to lower each load is recaptured by Konecranes DynAReg regenerative braking system. Electricity is fed back into the network and used to run other machinery, lowering overall energy costs and reducing environmental impact. Above all, mills using ASRS can eliminate the labor and capital cost of forklift systems.
![Konecranes parent roll handling crane](/sites/default/files/styles/height_200/public/2024-03/konecranes-parent-roll-handling-crane.jpg?itok=nu5gYNQD)
![Konecranes parent roll handling crane](/sites/default/files/styles/height_200/public/2024-03/konecranes-parent-roll-handling-crane.jpg?itok=nu5gYNQD)
Automation in parent roll handling may pay for itself
Parent roll handling cranes can handle full rolls and return the empty shafts on semi-automatic mode to and from the paper machine pope winder. Using this approach, jumbo roll stands can replace expensive traditional conveyor systems. Lifting beam hooks with mechanical locking devices and positioning sensors provide better operational safety, in both manual drive mode and semi-automatic drive mode.
Safety is also improved because an operator does not need to be nearby–the crane works in a totally closed area. Eliminating the conveyor rails saves the mill far more than the cost of automating the crane, allowing mills to recover their investment sooner.
Automated train loading system
Konecranes newest automation innovation can move 1,100 tons of pulp per hour onto train cars. This fully automated system also fills a 1,400-ton buffer at the railway platform twice a day. The cranes move 32 tons with each lift compared to a maximum 8 tons for a forklift, saving not only time, but also significant labor and capital costs. It is also possible to drive the cranes manually, assisted by Konecranes Smart Features for positioning and safety. In addition, the crane system has an interface for personnel access control to prevent people from entering the working area when cranes are operating in automatic mode.
