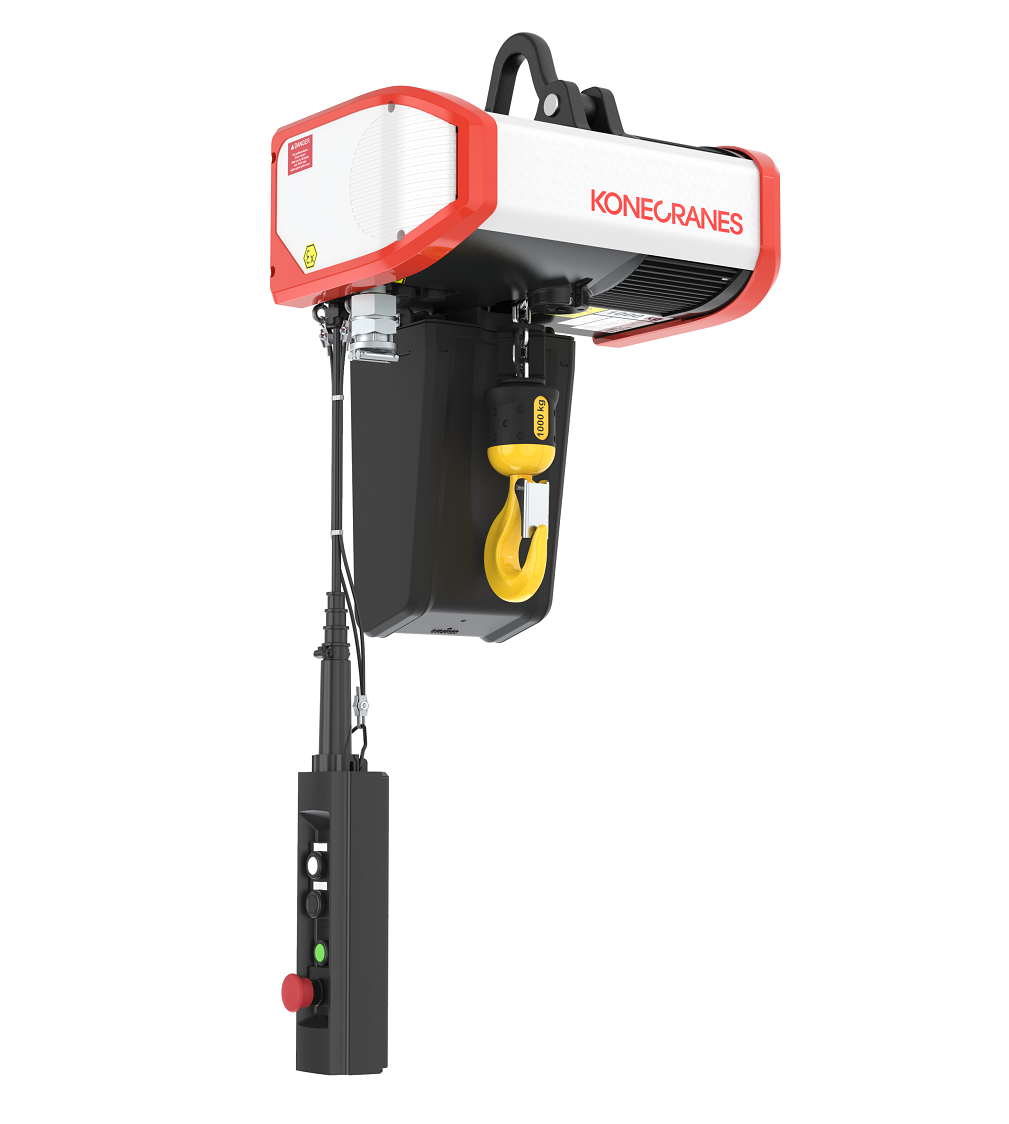

The Konecranes EX C-series electric chain hoist for Zone 22 is designed and tested to meet the Zone 22 dust hazardous environment requirements and built smart with our Core of Lifting components. The hoist is tough, safe, precise and reliable.
Product features
The Konecranes EX C-series electric chain hoist for Zone 22 is equipped with many standard features for performance and reliability:
- Designed and tested specifically to fulfil ATEX Zone 22 environment
- Extensive product range allows selection of suspensions and trolleys for a unique hoist that meets any lifting application
- Maximum surface temperature of 120°C and most demanding IIIC dust classification ensures the safe use of the equipment in Zone 22 dust environments
- IP66 ingress protection
- Temperature monitoring prevents overheating of the equipment
- Wide operating ambient temperature range from -20 °C to +40 °C enables the safe use of the equipment in various locations throughout the year
- Self-adjusting brake requiring little maintenance
- Easily adjustable slipping clutch prevents hoist overload
- Modular trolley easily adjustable to flange width
- Precision gears with lifetime lubrication
- All required parts are properly Ex-proof rated and tested to ensure the safety of the equipment
Technical specs
| FEATURES | SPECIFICATIONS | |||
|---|---|---|---|---|
| Duty Class | Up to FEM 3m/ISO M6 | |||
| Certifications | ATEX, CE, RoHS | |||
| Lifting Capacity | Up to 1,000 kg | |||
| Electrics | Wide voltage range with low voltage control | |||
| Hooks | According to DIN 15401 | |||
| Paint | Anodized aluminium frame painted with 70 μm | |||
| Hoist control | ATEX rated pendant with cable | |||
| Chain | Galvanized load chain (T-grade) or optional case-hardened DAT-chain | |||
| Suspension | Bracket + a full range of trolleys | |||
| Ambient Temperature range | -20°C - +40°C | |||
| Trolley travelling | 2-speed contactor controlled trolley travelling | |||
| Hoisting mode | 2-speed contactor controlled hoisting |
Benefits
The Konecranes EXCLX Electric Chain Hoist for Zone 22 offers the following benefits;
- Helps maintain safety of operators and facilities in Zone 22 dust hazardous potentially explosive environments
- Safe, reliable and easy to operate 2-speed contactor control technology
- Longer continuous operation with Cycling Duty Factor up to 50%
- Less maintenance with robust motor
- Increases safety as brakes always engage in case of power loss
- Boosts productivity with wide variety of lifting speeds
- Hoist shape and approach dimensions give control, mobility and efficient use of workspace
- Ergonomic design and intuitive controls improve safety and productivity
Want to know more about EX hoists?
Contact us to learn more about how the Konecranes EX C-series electric chain hoist for Zone 22 can fulfill your lifting needs.
High level of performance and reliability
Konecranes EX equipment is specially designed for the demanding requirements of hazardous environments. Our design quality, technical expertise and after-sales service helps your equipment stay safe to run and fully operational throughout a long and productive lifecycle.
